BLADERUNNER 45 INTERCEPTOR

Bladerunner

Offshore Thoroughbred

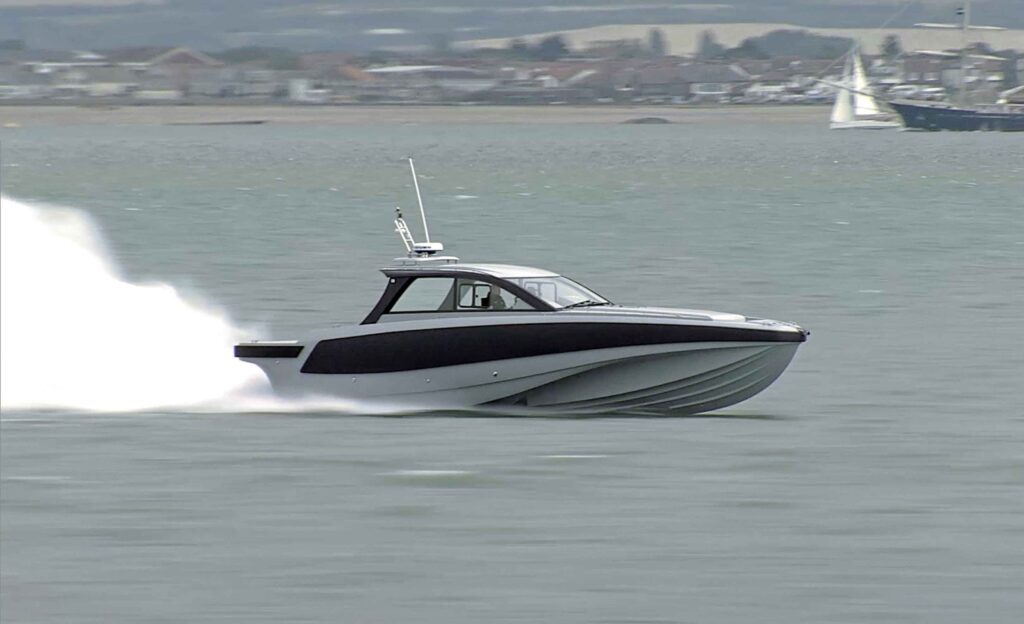

The Bladerunner BR45 Interceptor is a high speed offshore military craft capable of 70 knots with a capacity to carry 12 passengers and 2 crew.

With a range of 400nm, the BR45 Interceptor adapts well to applications such as a Special Forces insertion craft, or for Patrol Boat operations.

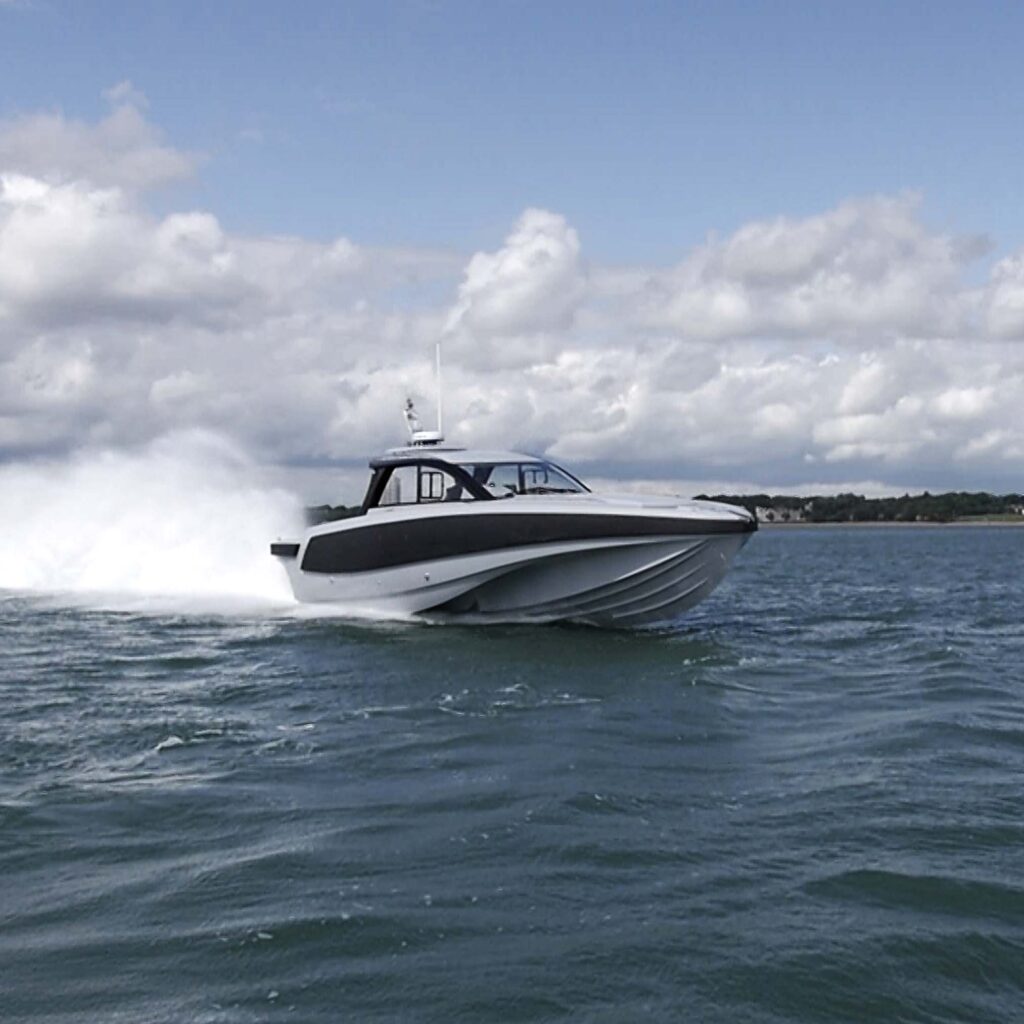

The Interceptors primary focus is Performance combined with excellent High Speed handling and Reduction in exposure to Whole Body Vibration (WBV)

Gen 3 Bladerunner Hull

The Bladerunner BR45 Interceptor incorporates the latest 3rd generation AEM hull (Air Entrapment Monohull) unique to ICE Marine, with advances in:

  • Improved rough water capability and handling
  • Reduction in repeated shock and whole body vibration
  • Improved manoeuvrability at high speed and reduced turning radius with optimised inward heel
  • Greater directional, lateral and pitch stability
  • Accessible performance, with less fatigue and input required from the Coxswain
  • Greater payload tolerance
  • Increased freeboard and dry ride

The Triple Punch

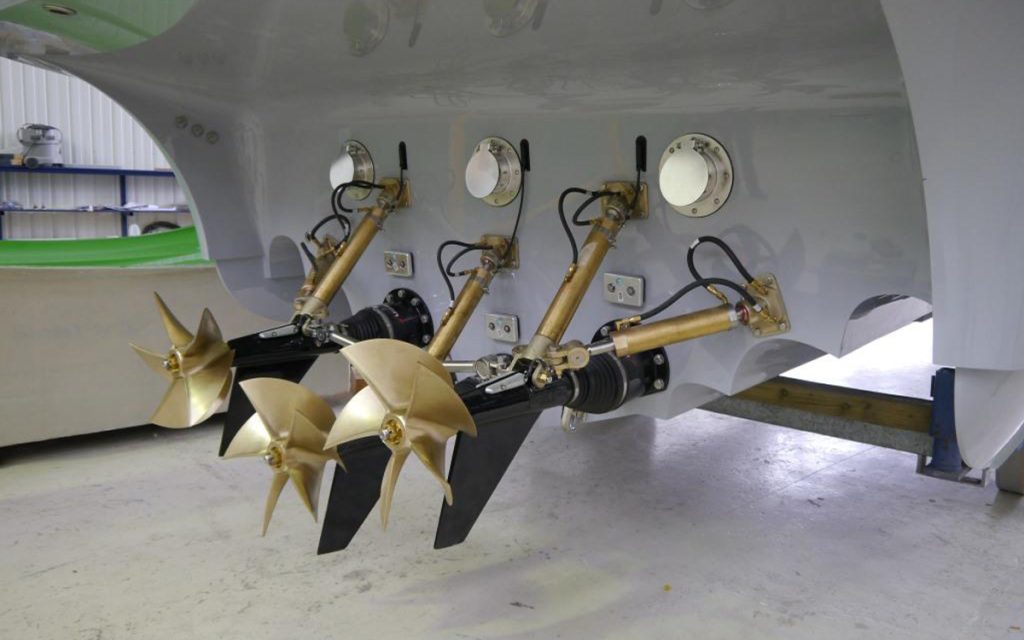

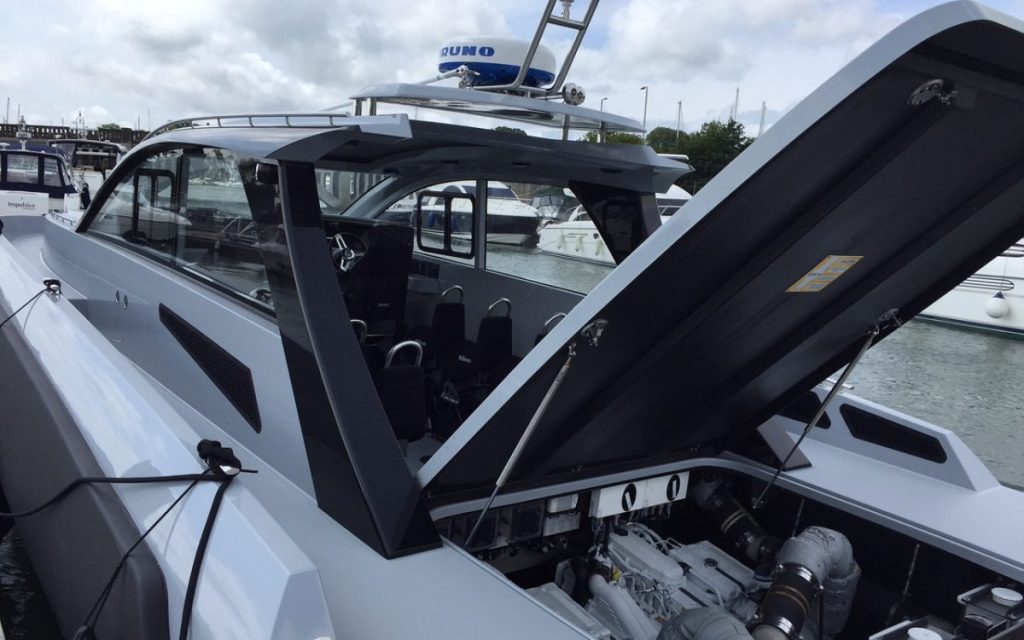

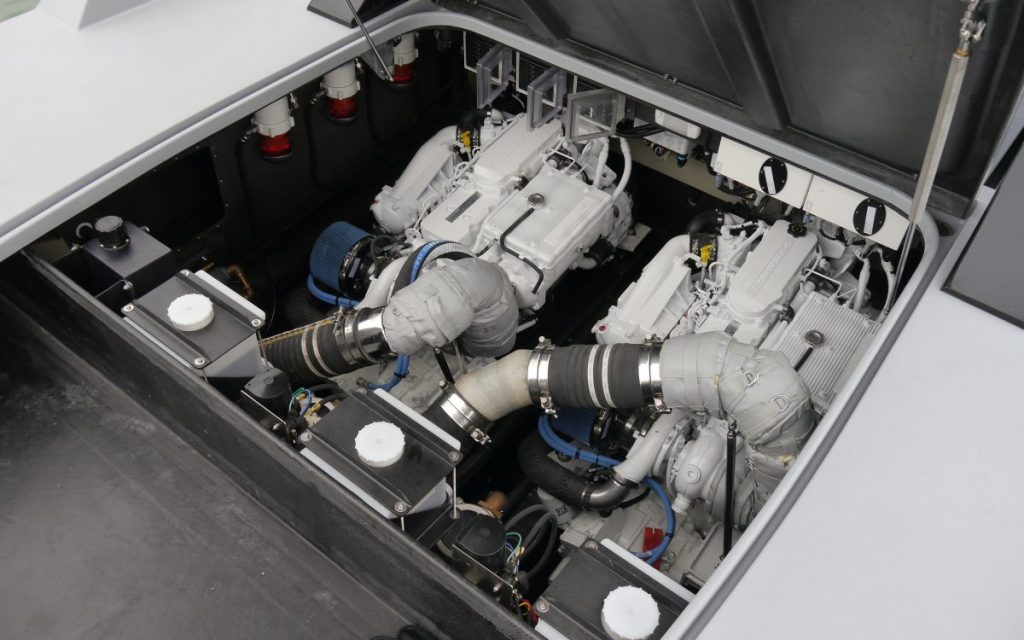

The BR45 Interceptor is powered by three 550hp inboard diesel engines driving through triple Arneson surface drives.

The platform specification can be tailored to suit the application and customer requirements, with further options for petrol or diesel, twin or triple engine configurations.

(Further details on request)

Principle Dimensions

Length LOA                                                                     13.7m

Beam Max (inc. fenders)                                                4.2m

Draft                                                                                  0.9m

Displacement Light Ship                                          8500kg

Displacement Full Load                                          11500kg

Fuel Capacity (approx.)                                       1800litres

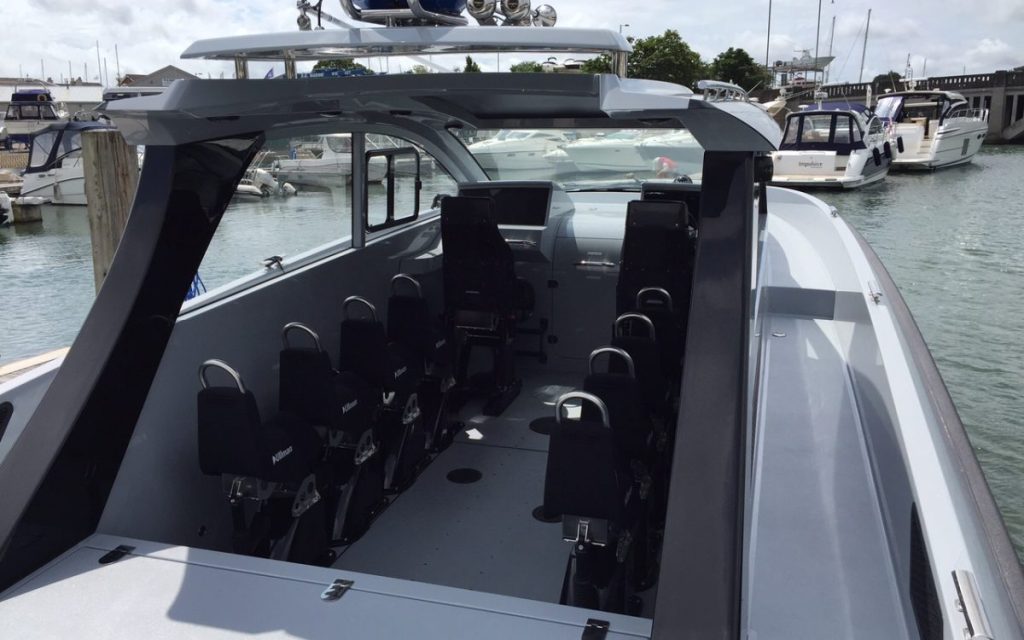

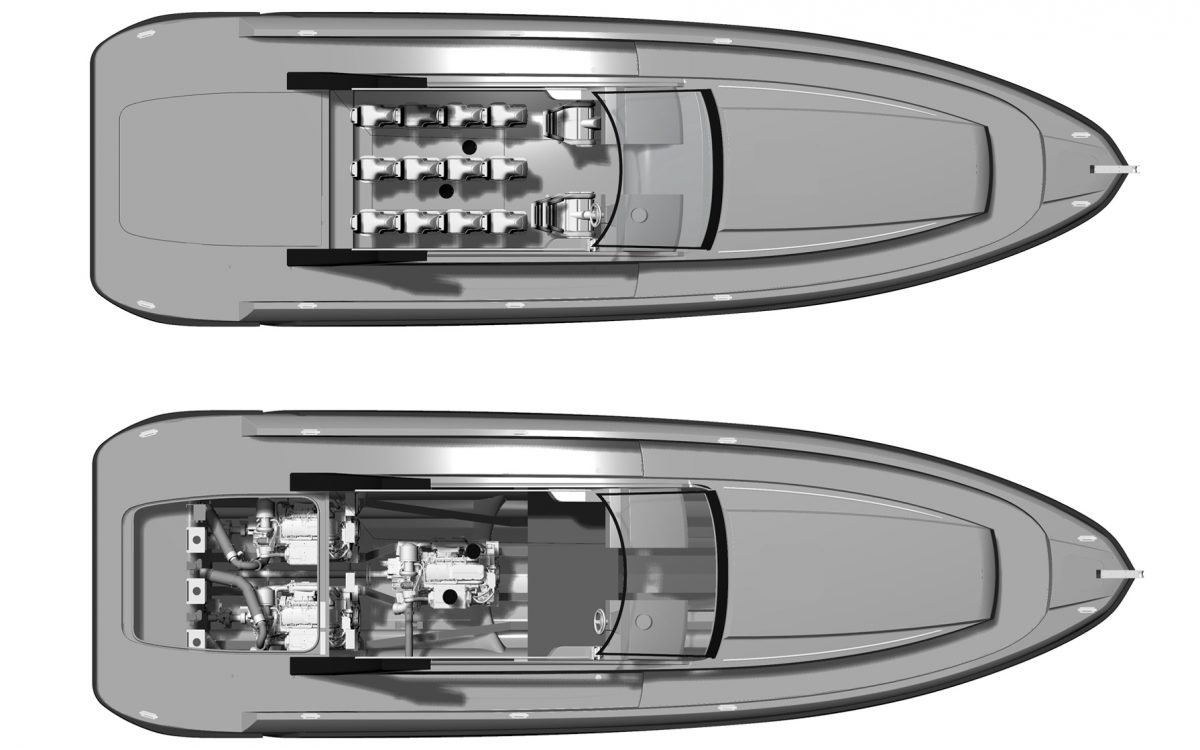

Suspension Seating                                     12 pax +2 crew

CE Category                                                                        B

Performance (Predictive)

Speed (engine package dependent):                   55-70+ knots

Range (approx.)                                                      up t0 500NM



Hull

Third Generation Bladerunner Triple Stepped Air Entrapment Monohull (AEM)

Bonded light weight, low profile integral foam fendering system

Construction

Lloyds approved UV resistant Isophthalic Gelcoat backed with Vinylester Power-bound CSM

Vinylester resin throughout. Advanced multiaxial fibreglass mats with lightweight PVC foam girder and bulkheads with carbon fibre stiffening

PVC foam sandwich construction hull, deck & superstructure

All composite materials Lloyds or DNV approved

Structure built to DNV Patrol R1 class rules

Engine and Drive System Options

Triple Volvo D6 370 with high performance DPR Duo Prop Stern drives (Diesel)

Triple Yanmar 6LY 440 with Konrad stern drives

Triple Cummins QSB550 with Arneson surface drives
